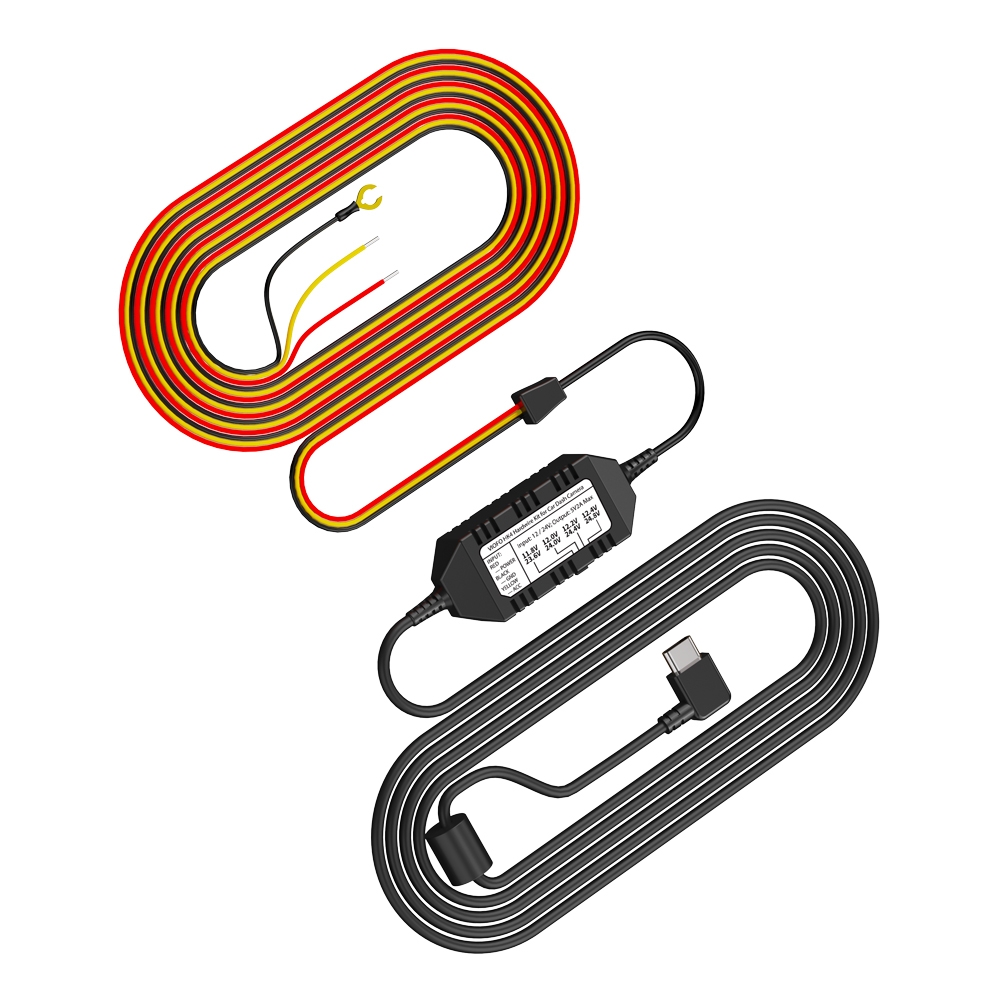

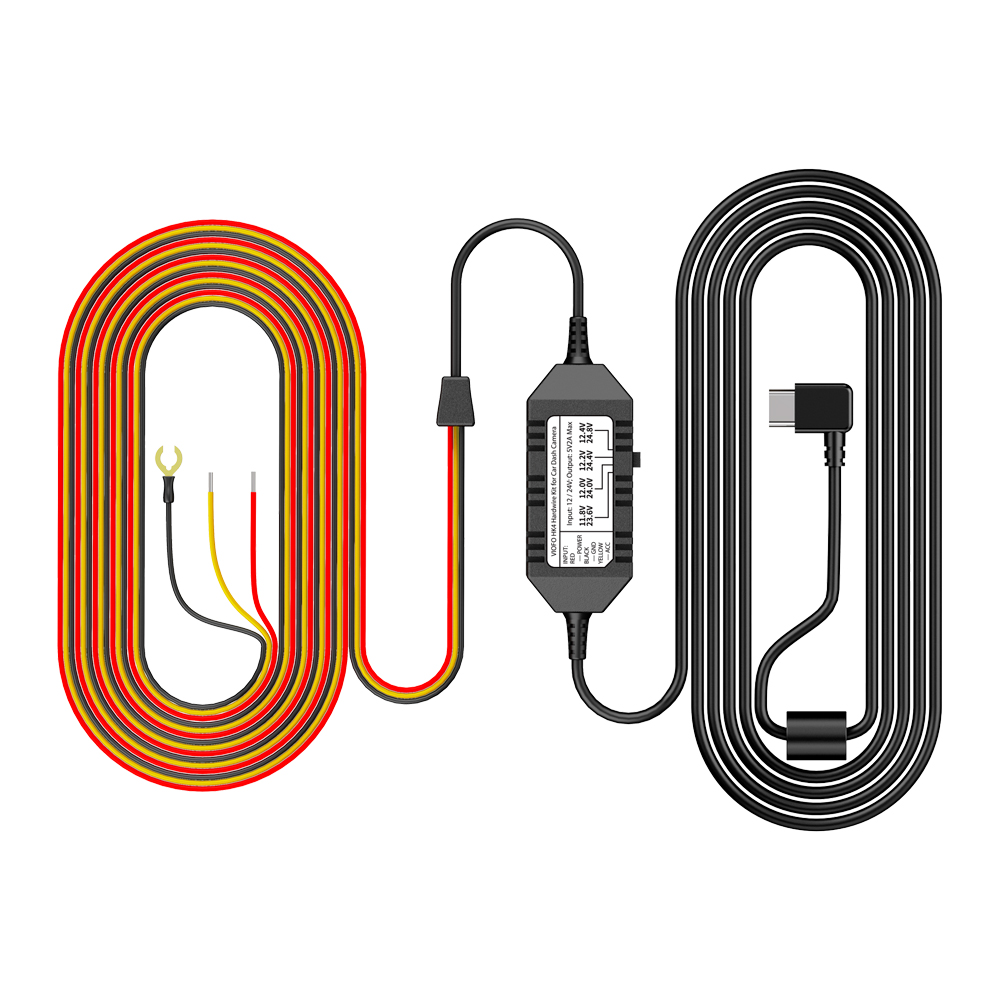

VIOFO HK4 Type-C Hardwire Kit

The VIOFO HK4 Type-C Hardwire Kit is designed to provide a clean, reliable and professional power connection for compatible VIOFO dash cams. It connects directly to your vehicle’s fuse box using constant power, ACC power and ground, allowing the dash cam to operate while driving and automatically switch to parking mode when the vehicle is turned off.

The HK4 is compatible with selected VIOFO Type-C dash cams including the A119 Mini 2, A119M Pro, A229 Plus, A229 Pro and A229 Ultra. It is ideal for drivers who want parking mode support, low-voltage battery protection and a neat hidden installation.

• Enables Parking Mode: Provides continuous power for compatible VIOFO dash cams while the vehicle is parked.
• Automatic ACC Detection: Allows the dash cam to switch between normal driving recording and parking mode automatically.
• Battery Protection: Helps prevent excessive vehicle battery drain with selectable low-voltage cut-off protection.
• Clean Installation: Keeps the power cable hidden for a neat, professional dash cam setup.
• 12V / 24V Compatible: Suitable for most cars, SUVs, utes, trucks and commercial vehicles.

A standard cigarette lighter power cable normally powers the dash cam only while the vehicle is switched on. The HK4 hardwire kit provides a more advanced power solution by connecting the dash cam directly to the vehicle fuse box.

Once installed, compatible VIOFO dash cams can continue monitoring your vehicle after the engine is turned off. Depending on the dash cam model and parking mode settings, this may help record impact events, motion around the vehicle or other parking-related incidents.

The HK4 uses ACC detection to recognise when the vehicle is running or turned off. When the ignition is on, the dash cam records normally. When the vehicle is turned off, the dash cam can automatically enter parking mode.

This makes everyday use easier because you do not need to manually change recording modes every time you park or start the vehicle.

The HK4 includes low-voltage cut-off protection to help protect your vehicle battery. When the vehicle battery voltage drops to the selected threshold, the hardwire kit stops supplying power to the dash cam.

This helps reduce the risk of excessive battery discharge while still allowing your dash cam to provide parking mode coverage when the vehicle is parked.

The VIOFO HK4 offers selectable voltage cut-off options, allowing you to choose a suitable battery protection level for your vehicle. This is especially useful for parking mode operation, where the dash cam may continue monitoring the vehicle for an extended period after the engine is turned off.

Installation note: For vehicles with smaller batteries or vehicles parked for long periods, a higher voltage cut-off setting may be more suitable. If unsure, professional installation is recommended.

• VIOFO A119 Mini 2
• VIOFO A119M Pro
• VIOFO A229 Plus
• VIOFO A229 Pro
• VIOFO A229 Ultra

A329S Series note: For VIOFO A329S Series dash cams, we recommend using the VIOFO HK6 Type-C ACC Hardwire Kit for full parking mode support.

Compatibility note: This product is designed for compatible VIOFO dash cams with a Type-C power connection. Feature availability may vary depending on dash cam model, firmware version and app settings.

The HK4 must be connected to the vehicle fuse box using constant power, ACC power and ground. Correct fuse selection is important for safe operation and proper parking mode performance.

Installation normally requires identifying suitable fuse locations, connecting the fuse taps correctly and routing the cable safely behind vehicle trim. If you are not confident working with vehicle electrical systems, professional installation is recommended.

Important: Fuse box locations and fuse types vary by vehicle make, model, year and trim. Please check your vehicle fuse box before installation.

• Type-C hardwire kit for compatible VIOFO dash cams
• Compatible with A119 Mini 2, A119M Pro, A229 Plus, A229 Pro and A229 Ultra
• Connects through the vehicle fuse box using constant power, ACC and ground
• Enables automatic parking mode switching
• Supports continuous power for parking mode
• Selectable low-voltage cut-off protection
• Helps prevent excessive vehicle battery drain
• 12V / 24V vehicle compatibility
• Clean hidden cable installation

• VIOFO HK4 Type-C Hardwire Kit

The HK4 is recommended for customers purchasing compatible VIOFO dash cams who want to use parking mode. It pairs especially well with the VIOFO A229 Ultra 2CH, A229 Pro 2CH, A229 Plus 2CH, A119M Pro 1CH and A119 Mini 2 1CH.
