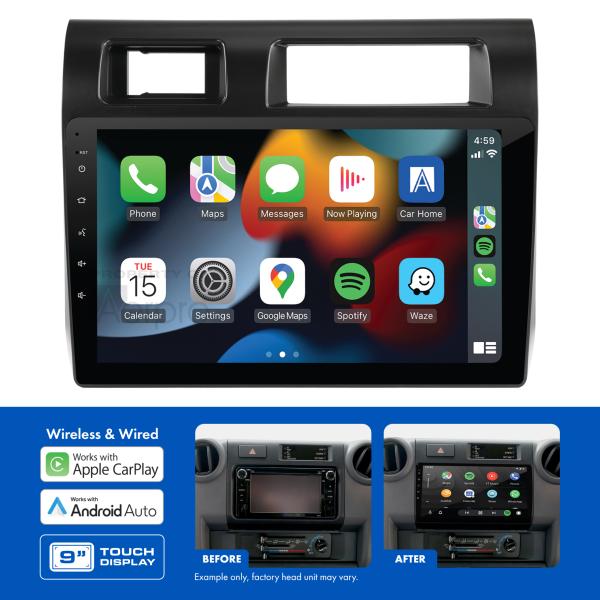

AKTO29

To suit Toyota Landcruiser 70 Series (2010-2022) vehicles
Includes all the parts required to complete the installation
Apple CarPlay & Android Auto (wireless / wired)
Large 9" capacitive touchscreen display
Steering wheel control retention
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Dual rear USB inputs (1.5A max charging)
Dual camera inputs (AHD 720P compatible) & rear A/V input
50Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control

Important Information:

Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
This head unit is sold as a kit which includes:
AM9X Multimedia Receiver
Black Facia Kit
Harness
Antenna Adaptor

AMTO29 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

Kit Inclusions:
AM9X Multimedia Receiver
Black Facia Kit
Harness
Antenna Adaptor
Vehicle Feature Retention:
Steering Wheel Controls: N/A
Factory Reverse Camera: N/A
AUX Input: N/A
USB Input: N/A
Parking Tones: N/A
Factory Amplifier: N/A
Vehicle Menu: N/A
Other: N/A

Specs:
AMTO29 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

Kit Inclusions:
AM9X Multimedia Receiver
Black Facia Kit
Harness
Antenna Adaptor
Vehicle Feature Retention:
Steering Wheel Controls: N/A
Factory Reverse Camera: N/A
AUX Input: N/A
USB Input: N/A
Parking Tones: N/A
Factory Amplifier: N/A
Vehicle Menu: N/A
Other: N/A
AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:

LCD Display:
Size: 9"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 50W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB 1 (Rear) Playback Formats: CP,AA & Media
USB 2 (Rear) Playback Formats: Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Second Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:

Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
Does not suit new 2023- models with Steering wheel controls (hazard and clock are different)
